Great assembly level SZL Coal Fired Steam Hot Water Boiler wiht small heat loss
production

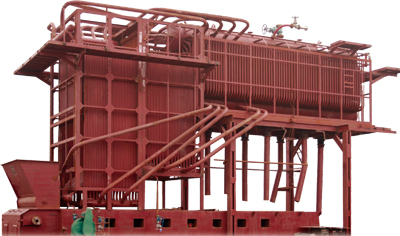

HD SZL packaged water-tube steam boiler is the double-cylinder, water-tube assembly, chain grate boiler. Two cylinders are laid at the upper and lower level of boiler longitudinally along the center. Front section of the upper cylinder and water-cooled tubes at side walls form the radiation-heating area in the hearth. While the rear section and tube bank in the lower cylinder serve as convection-heating area. Coal econnomizer is mounted at the rear of bolier. Some heat of hot combustion fume is absorbed by the hearth. Then hot combustion heat flows to the convection heating area through cooling chamber and exhausts outside with the chimney via coal economizer, dust collector and draught fan.
Performance advantages
1, The sealing performance is good.
2, The output is sufficient.
3, High thermal efficiency
4, High efficiency
5, Safety a high degree of automation
Parameter
| Model | SZL6-1.25-AII
SZL6-1.6-AII
SZL6-2.5-AII | SZL8-1.25-AII
SZL8-1.6-AII
SZL8-2.5-AII | SZL10-1.25-AII
SZL10-1.6-AII
SZL10-2.5-AII | SZL15-1.25-AII
SZL15-1.6-AIISZL15-2.5-AII |
Rated heating efficiency(MW) | 6 | 8 | 10 | 15 |
| Rated working pressure(MPa) | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 |
Rated steam temperature | 193/204/226 | 193/204/226 | 193/204/226 | 193/204/226 |
| Water-supply temperature | 60 | 60 | 60 | 60 |
| heating area | Boiler(m) | 156 | 197.4 | 235.6 | 335 |
Coal economizer(m) | 87.2 | 157 | 174.4 | 354 |
Air preheater (m) | | | | |
Effective area of grate(m) | 7.8 | 10.1 | 11.8 | 17.3 |
Water volume(m³) | 7.3 | 9.6 | 12.4 | 15.3 |
Design efficiency(%) | 80 | 80 | 80 | 80 |
| Applicable fuel | Soft coal Class II and III |
| Maximum size of shipping part(m) | 6.1×3.1×3.5 | 6.8×3.4×3.5 | 7.6×3.4×3.5 | 9.6×3.4×3.54 |
| Maximum weight of shipping part(t) | 25 | 29 | 31 | 42 |
Overall size of installation(m) | 9.5×5.5×6.2 | 9.5×5.5×6.2 | 9.8×5.7×6.2 | 10.9×5.7×6.7 |
Draught fan | GY6-1 30kw | GY10-1 45kw | GY10-15 55kw | Y5-47 12D 75kw |
| Blower fan | T4-72 5A 11kw | GG10-1 15kw | GG10-1 15kw | G4-73 9D 30kw |
| Speed governor | GL-10P 0.75kw | GL-16P 1.1kw | GL-16P 1.1kw | GL-20P/II 1.5kw |
Company Information
HD Boiler established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port or 60km State Road to Suzhou or Wuxi, with transportation extending in all directions conveniently and quickly.
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
